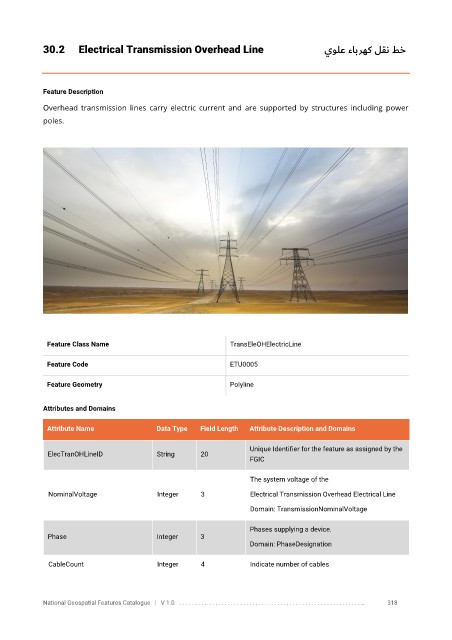

30.2 Electrical Transmission Overhead Line يولع ءابرهك لقن طخ

Feature Description

Overhead transmission lines carry electric current and are supported by structures including power
poles.

Feature Class Name TransEleOHElectricLine

Feature Code ETU0005

Feature Geometry Polyline

Attributes and Domains

Attribute Name Data Type Field Length Attribute Description and Domains

Unique Identifier for the feature as assigned by the
ElecTranOHLineID String 20
FGIC

The system voltage of the

NominalVoltage Integer 3 Electrical Transmission Overhead Electrical Line

Domain: TransmissionNominalVoltage

Phases supplying a device.
Phase Integer 3
Domain: PhaseDesignation

CableCount Integer 4 Indicate number of cables
