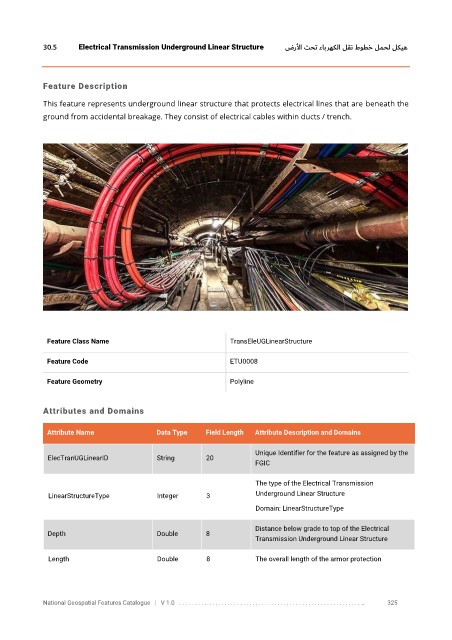

30.5 Electrical Transmission Underground Linear Structure ضرلأا تحت ءابرهكلا لقن طوطخ لمحل لكيه

Feature Description

This feature represents underground linear structure that protects electrical lines that are beneath the
ground from accidental breakage. They consist of electrical cables within ducts / trench.

Feature Class Name TransEleUGLinearStructure

Feature Code ETU0008

Feature Geometry Polyline

Attributes and Domains

Attribute Name Data Type Field Length Attribute Description and Domains

Unique Identifier for the feature as assigned by the
ElecTranUGLinearID String 20
FGIC

The type of the Electrical Transmission
LinearStructureType Integer 3 Underground Linear Structure
Domain: LinearStructureType

Distance below grade to top of the Electrical
Depth Double 8
Transmission Underground Linear Structure

Length Double 8 The overall length of the armor protection
