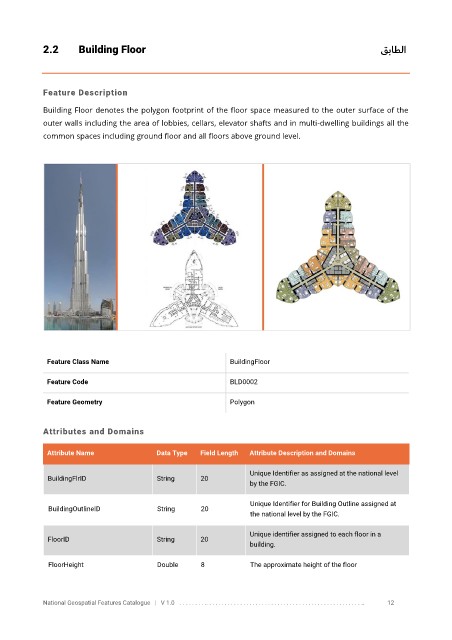

Page 45 - UAE National Geospatial Feature Catalogue

2.2 Building Floor قباطلا

Feature Description

Building Floor denotes the polygon footprint of the floor space measured to the outer surface of the
outer walls including the area of lobbies, cellars, elevator shafts and in multi-dwelling buildings all the

common spaces including ground floor and all floors above ground level.

Feature Class Name BuildingFloor

Feature Code BLD0002

Feature Geometry Polygon

Attributes and Domains

Attribute Name Data Type Field Length Attribute Description and Domains

Unique Identifier as assigned at the national level
BuildingFlrID String 20
by the FGIC.

Unique Identifier for Building Outline assigned at
BuildingOutlineID String 20
the national level by the FGIC.

Unique identifier assigned to each floor in a
FloorID String 20
building.

FloorHeight Double 8 The approximate height of the floor

National Geospatial Features Catalogue | V 1.0 . . . . . . . . .. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. 12
