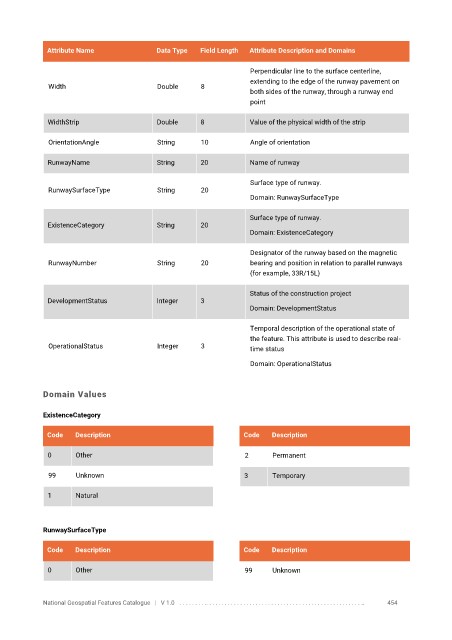

Attribute Name Data Type Field Length Attribute Description and Domains

Perpendicular line to the surface centerline,
extending to the edge of the runway pavement on
Width Double 8
both sides of the runway, through a runway end
point

WidthStrip Double 8 Value of the physical width of the strip

OrientationAngle String 10 Angle of orientation

RunwayName String 20 Name of runway

Surface type of runway.
RunwaySurfaceType String 20
Domain: RunwaySurfaceType

Surface type of runway.
ExistenceCategory String 20
Domain: ExistenceCategory

Designator of the runway based on the magnetic
RunwayNumber String 20 bearing and position in relation to parallel runways
(for example, 33R/15L)

Status of the construction project
DevelopmentStatus Integer 3
Domain: DevelopmentStatus

Temporal description of the operational state of
the feature. This attribute is used to describe real-
OperationalStatus Integer 3 time status

Domain: OperationalStatus

Domain Values

ExistenceCategory

Code Description Code Description

0 Other 2 Permanent

99 Unknown 3 Temporary

1 Natural

RunwaySurfaceType

Code Description Code Description

0 Other 99 Unknown
