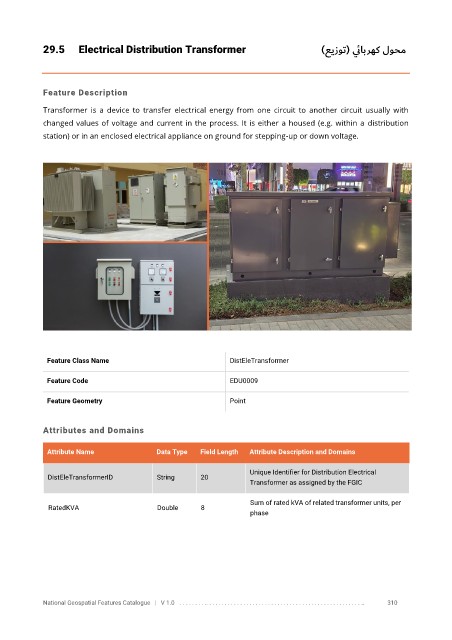

29.5 Electrical Distribution Transformer )عيزوت( ي ئابرهك لوحم

Feature Description

Transformer is a device to transfer electrical energy from one circuit to another circuit usually with
changed values of voltage and current in the process. It is either a housed (e.g. within a distribution

station) or in an enclosed electrical appliance on ground for stepping-up or down voltage.

Feature Class Name DistEleTransformer

Feature Code EDU0009

Feature Geometry Point

Attributes and Domains

Attribute Name Data Type Field Length Attribute Description and Domains

Unique Identifier for Distribution Electrical
DistEleTransformerID String 20
Transformer as assigned by the FGIC

Sum of rated kVA of related transformer units, per
RatedKVA Double 8
phase
