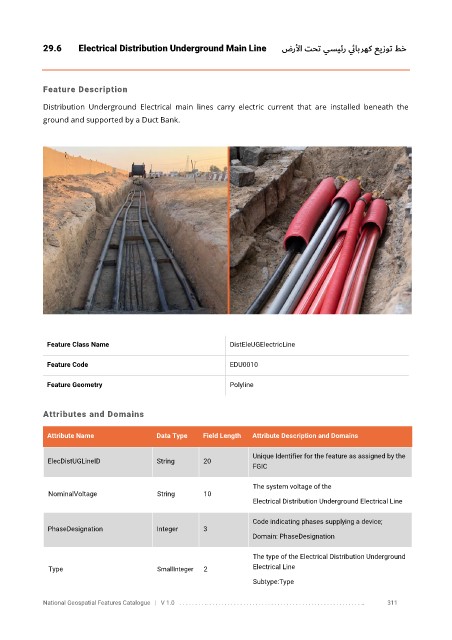

29.6 Electrical Distribution Underground Main Line ضرلأا تحت يسيئر ي ئابرهك عيزوت طخ

Feature Description

Distribution Underground Electrical main lines carry electric current that are installed beneath the
ground and supported by a Duct Bank.

Feature Class Name DistEleUGElectricLine

Feature Code EDU0010

Feature Geometry Polyline

Attributes and Domains

Attribute Name Data Type Field Length Attribute Description and Domains

Unique Identifier for the feature as assigned by the
ElecDistUGLineID String 20
FGIC

The system voltage of the
NominalVoltage String 10
Electrical Distribution Underground Electrical Line

Code indicating phases supplying a device;
PhaseDesignation Integer 3
Domain: PhaseDesignation

The type of the Electrical Distribution Underground
Type SmallInteger 2 Electrical Line
Subtype:Type

National Geospatial Features Catalogue | V 1.0 . . . . . . . . .. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. 311
