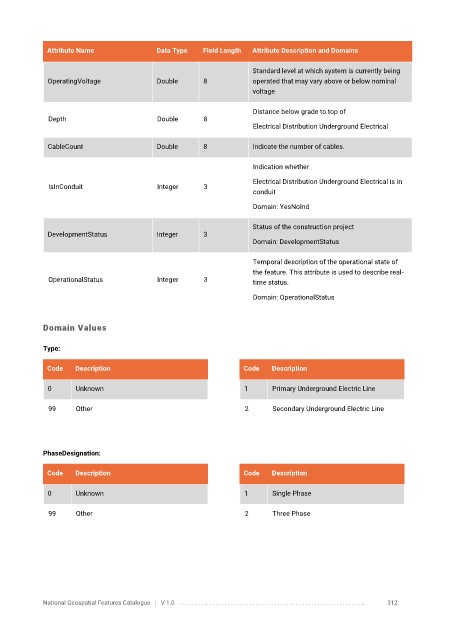

Attribute Name Data Type Field Length Attribute Description and Domains

Standard level at which system is currently being
OperatingVoltage Double 8 operated that may vary above or below nominal
voltage

Distance below grade to top of
Depth Double 8
Electrical Distribution Underground Electrical

CableCount Double 8 Indicate the number of cables.

Indication whether
Electrical Distribution Underground Electrical is in
IsInConduit Integer 3
conduit
Domain: YesNoInd

Status of the construction project
DevelopmentStatus Integer 3
Domain: DevelopmentStatus

Temporal description of the operational state of
the feature. This attribute is used to describe real-
OperationalStatus Integer 3 time status.

Domain: OperationalStatus

Domain Values

Type:

Code Description Code Description

0 Unknown 1 Primary Underground Electric Line

99 Other 2 Secondary Underground Electric Line

PhaseDesignation:

Code Description Code Description

0 Unknown 1 Single Phase

99 Other 2 Three Phase
